 當前位置：首頁 > 產品中心 > 工控產品 > 工控機主板> 產品詳情 |
|
 |
|
| |
|
|
| |
|
|
| 產品類別： |
工控機主板 |
| 廠 商： |
|
| 產 地： |
臺灣 |
| 產品型號： |

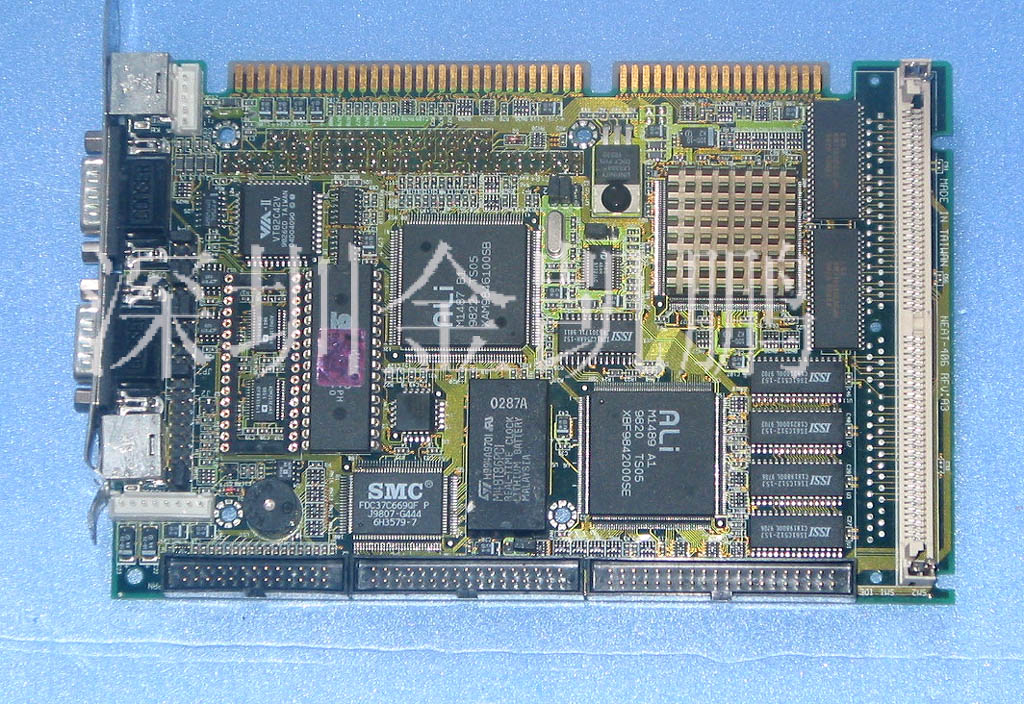

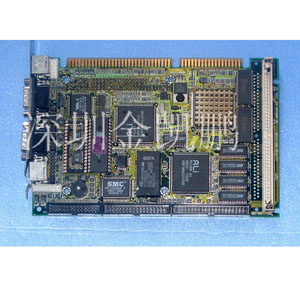

NEAT-406 半長CPU卡 |
| |
|
| |
|
|
|
|
|
| 詳細介紹 (全國統一免費熱線: 0755-83659158 ) |
|
|
Specification
CPU:
On board equipped with AMD AM486DX5-133 SQFP CPU and heat-sink
Cache:
256KB 2 level cache memory
Memory:
On board 4 MB EDO DRAM with one 72-pin SIMM socket supports FPM/EDO DRAM module up to 36MB
System Chipset:
ALi M1487/M1489
I/O Chipset:
SMC 37C669
Real Time Clock:
SGS M48T86 PCI (or compatible) with lithium battery backup
for 10 years of data retention
Flash Disk Socket:
DiskOnChip socket supports up to 288MB
Watch-dog Timer:
With system reset generation capability, timer interval ranges 0~63 sec (14-level)
IDE Interface:
One channel supports up to two PCI mode 4 enhanced IDE drives
Floppy Interface:
One channel supports up to two floppy disk drivers, 3.5" and/or 5.25"
Parallel Port:
One Bi-directional parallel port, SPP/EPP/ECP modes supported
Serial port:
One RS-232 and one RS-232/422/485 selectable serial ports
Keyboard Connector:
One Mini-DIN pS/2 connector on bracket and another 5-pin external KBD connector
Mouse Connector:
One Mini-DIN PS/2 mouse connector
Expansion:
On board 16-bit PC/104 connector
Power Requirement:
Single power +5V@2.5A (max.), 8-pin external power connector
Dimension in mm:
185 x 122 (7.2" x 4.8")
Operating Temperature:
0 to 60 C (32 to 140F)
Storage Temperature:
-20 to 80 C
Relative Humidity:
10% to 95%, non-condensing
|
|
|
|
|
|
|
