半長工控主板(帶網口 / LCD / VGA) IPC-48

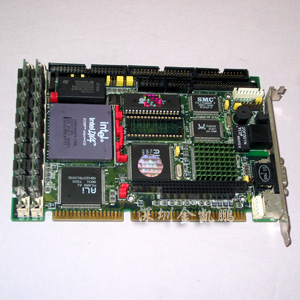

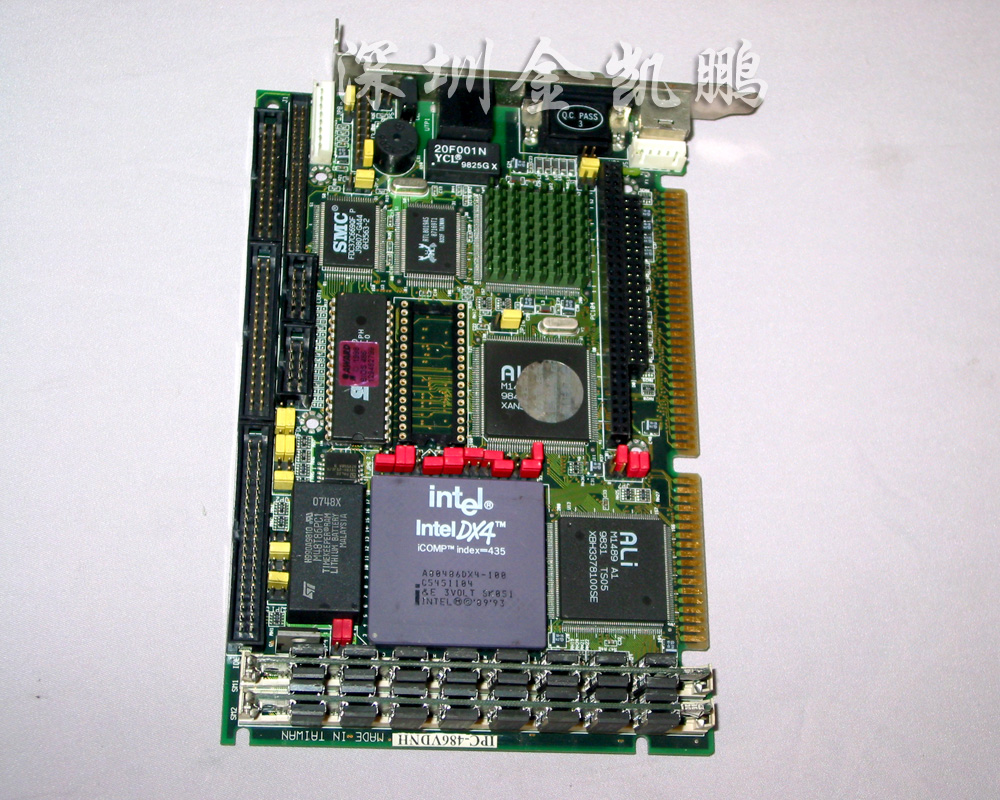

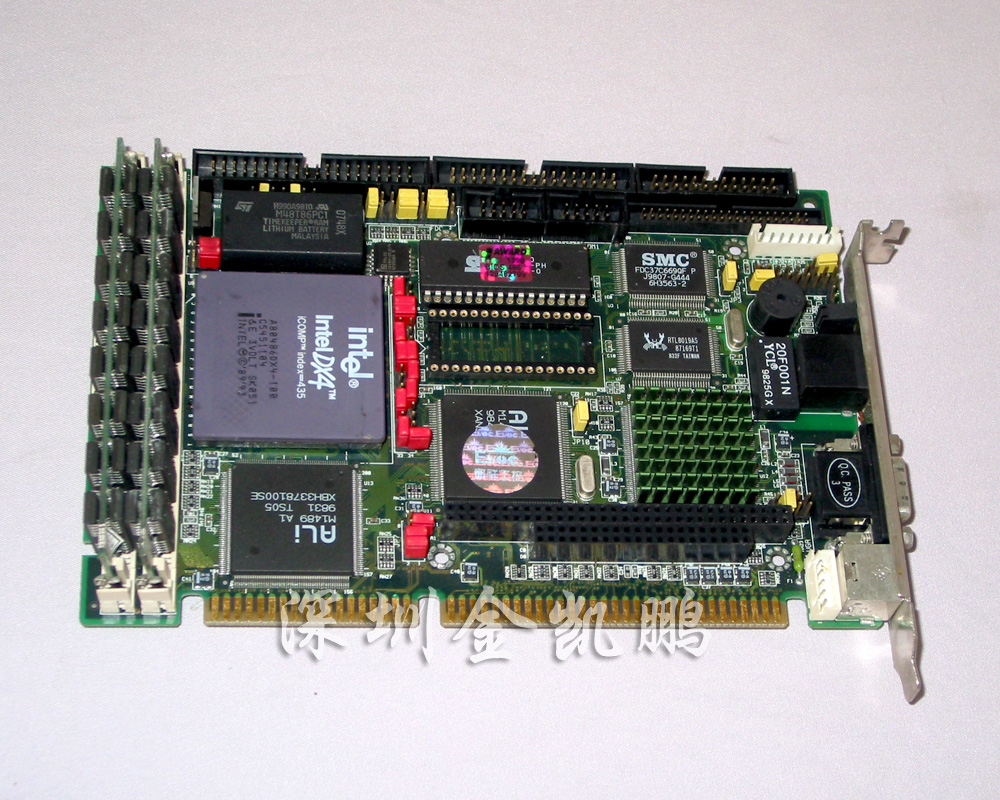

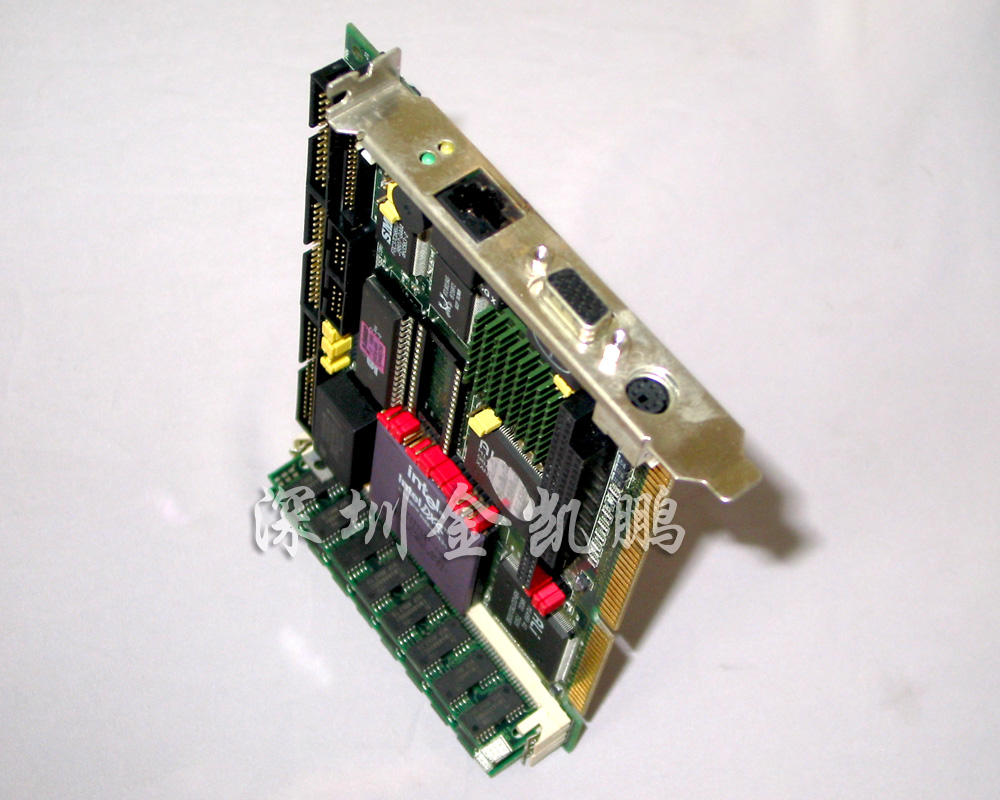

研祥 半長工控主板(帶網口 / LCD / VGA) IPC-486VDNH

研祥 半長工控主板(帶網口 / LCD / VGA) IPC-486VDNH簡介：

IPC-486VDNH主要技術參數:

IPC-486VDNH帶LCD/CRT，Ethernet和Flash電子盤接口

IPC-486VDNH

ISA bus-98 pin for 16 bit ISA bus
*CPU Supports INTEL/AMD 80486DX 25/33/66/75/100/120/133 MHz & Cyrix 5x86 processor
*Cache: 256KB 2nd level cache memory

IPC-486VDNH
*Memory: Supports FPM/EDO DRAM
Supports two 72-pin SIMM sockets, accept 1,2,4,8,16 or 32 MB SIMM
*Chipset: System Chipset: AL1 M1487/m1489
I/O Chipset: SMC 37C669
*Real time Clock:

IPC-486VDNH
SGS M48T86 PCI (or compatible) with lithium battery backup for 10 years of data retention
*Networking:
RLT8019AS, 10base T, with RJ-45 conector
*Display:
-chipset: C&T 65550 PCI local bus flat-panel with Windows accelerator and Video p lay back.
-Display memory: on board EDO DRAM 1MB up to 2MB
-Display resolution:
support Flat-panel resolutions up to 640*480, 800*600, 1024*768, 1280*1024.
Support non-interlace CRT monitors, 1024*768 64K colors
-Display connector: DB-15 VGA connector for CRT monitor and 2*22 pin header for Flat-panel
-support 3.3V and 5V Flat-panel
*S.S.D.:
Socket for M-system Disk on Chip
*IDE:
Supports up to two, PCI mode 4 enhance IDE hard disk interface
*Floppy:
Supports up two floppy disk drivers, 3.5’and/or 5.25’
*Parallel port:
Enhanced Bi-directional EPP/ecp parallel port
*Serial port:
One RS232 port with 16c550 UART
One RS232/422/485 port with 16c550 UART
*Watchdog Timer:
Can generate a system RESET, The timer interval is 0~64 sec ( 14level)
*Keyboard Connector:
One 6 pin Mini_Din connector is located on the mounting bracket
One pin header connector for extemal keyboard adapter
*Power Supply Voltage:
Single power +5V/2.5A, 8_pin external power connector
*Operating Temperature:
32 to 140 F (0 to 60 ℃)
*Board Size:
185mm*122mm
