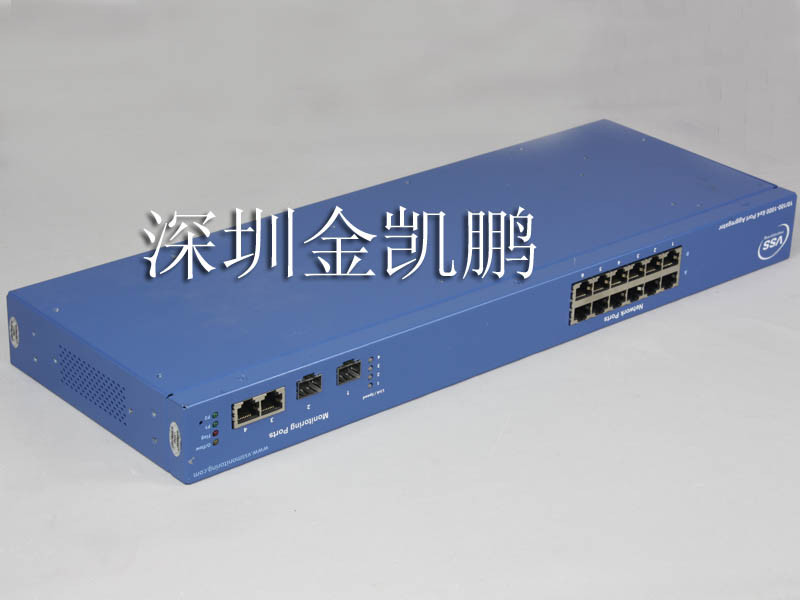

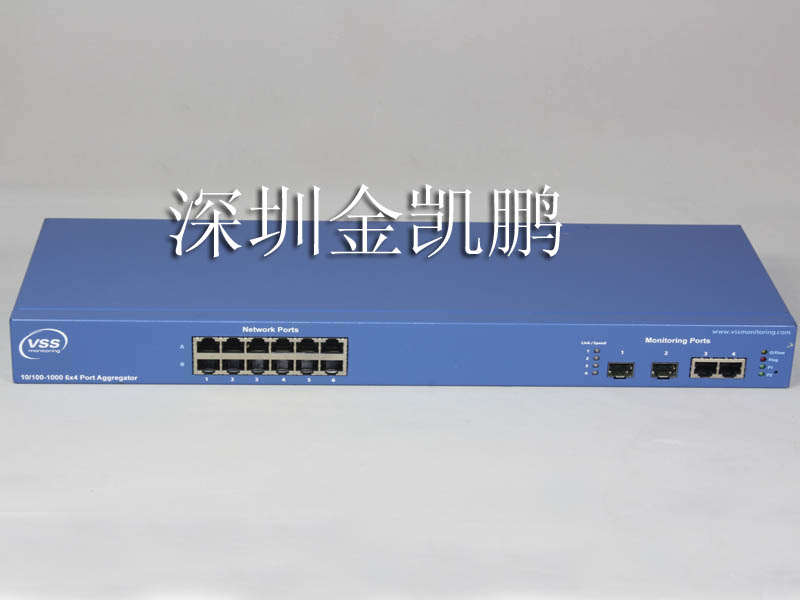

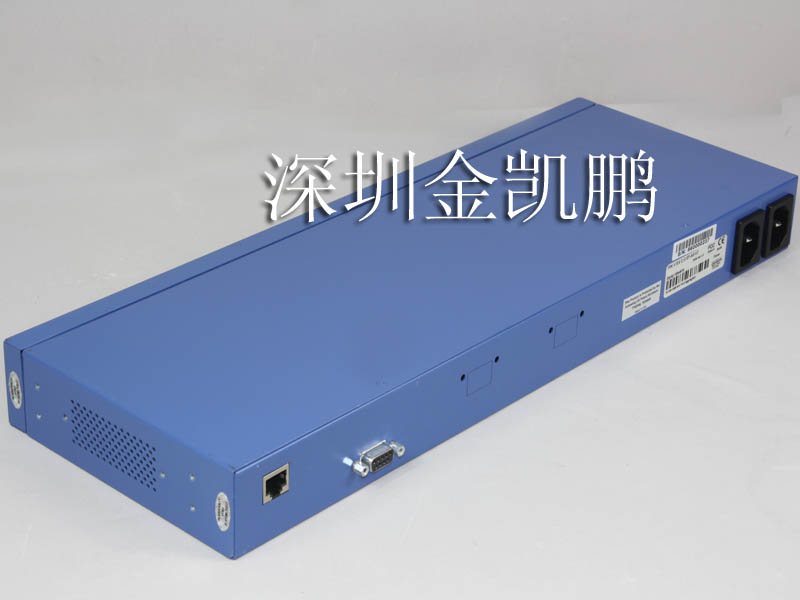

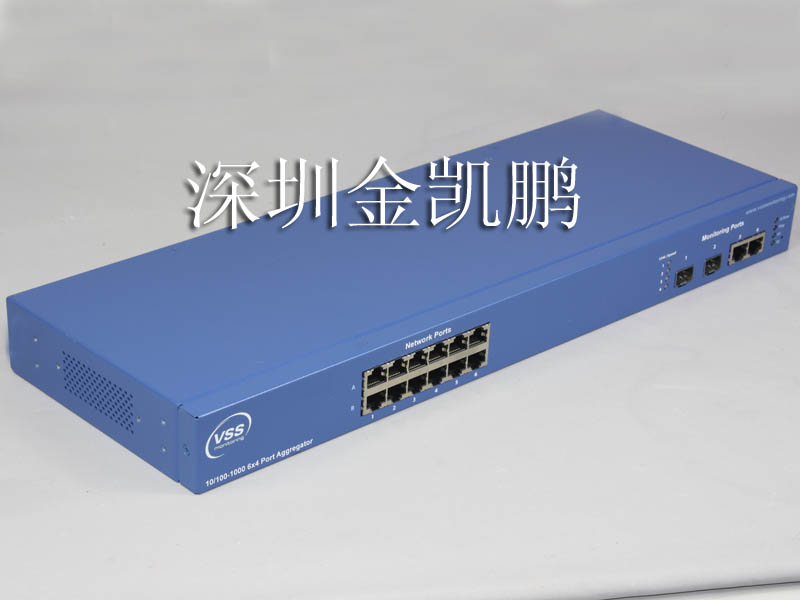

vssmonitoring 匯聚TAP V 6.4 C.C-EF-AS-V2
vssmonitoring 匯聚TAP V 6.4 C.C-EF-AS-V2 綜述
? VSS'' 10/100 v6x4, v12x4, and v24x4 Port Aggregators provide simultaneous traffic access of up to 6 and 12 Inline networks, or 12 and 24 SPAN ports to 4 monitor ports. Users have complete control over how the Port Aggregators, operating fully at layers 1 and 2, deliver traffic to their selected passive monitoring tools with selective aggregation.
Secure: Without an IP address, TAPs have no presence on the network which safeguards users'' security and performance monitoring.
High Performance: Full line rate throughput, all layer 1 and 2 functionality, and low latency throughput to monitor output guarantee full visibility at line speeds.
Reliable: Redundant power supplies and 100% passive inline electrical access ensure your network never goes down.
Scalable: Work independently or in conjunction with each other and any DTCS as part of a traffic access architecture.
vssmonitoring 匯聚TAP V 6.4 C.C-EF-AS-V2 特性
100％掉電安全
全線速流量接入
監測輸出吞吐量低時延
占數據中心空間較小
雙冗余、全球通用電源（交直流可選）
端口狀態和活動LED指示燈
vssmonitoring 匯聚TAP V 6.4 C.C-EF-AS-V2 法規遵從
100% IEEE
ISO 9001
CB/CE/FCC/UL
RoHS
美國生產制造
vssmonitoring 匯聚TAP V 6.4 C.C-EF-AS-V2 型號：
v6x4/v12x4/v24x4 Port Aggregators
Inline Traffic Access Models
Part Number Description Ports
V 6.4 C.C-EF-AS-V2 v6x4 10/100-1000 Port Aggregator Six 10/100 UTP network input port pairs, Two 10/100/1000 UTP monitor output ports, Two 1G SFP monitor output ports
V 12.4 C.C-EF-AS-V2 v12x4 10/100-1000 Port Aggregator Twelve 10/100 UTP network input port pairs, Two 10/100/1000 UTP monitor output ports, Two 1G SFP monitor output ports
SPAN Traffic Access Models
Part Number Description Ports
V 12.4 C.C-EF-AS-span-V2 v12x4 10/100-1000 SPAN Port Aggregator Twelve 10/100 UTP network input ports; Two 10/100/1000 UTP monitor output ports, Two 1G SFP monitor output ports
V 24.4 C.C-EF-AS-span-V2 v24x4 10/100-1000 SPAN Port Aggregator Twenty-four 10/100 UTP network input ports, Two 10/100/1000 UTP monitor output ports, Two 1G SFP monitor output ports
