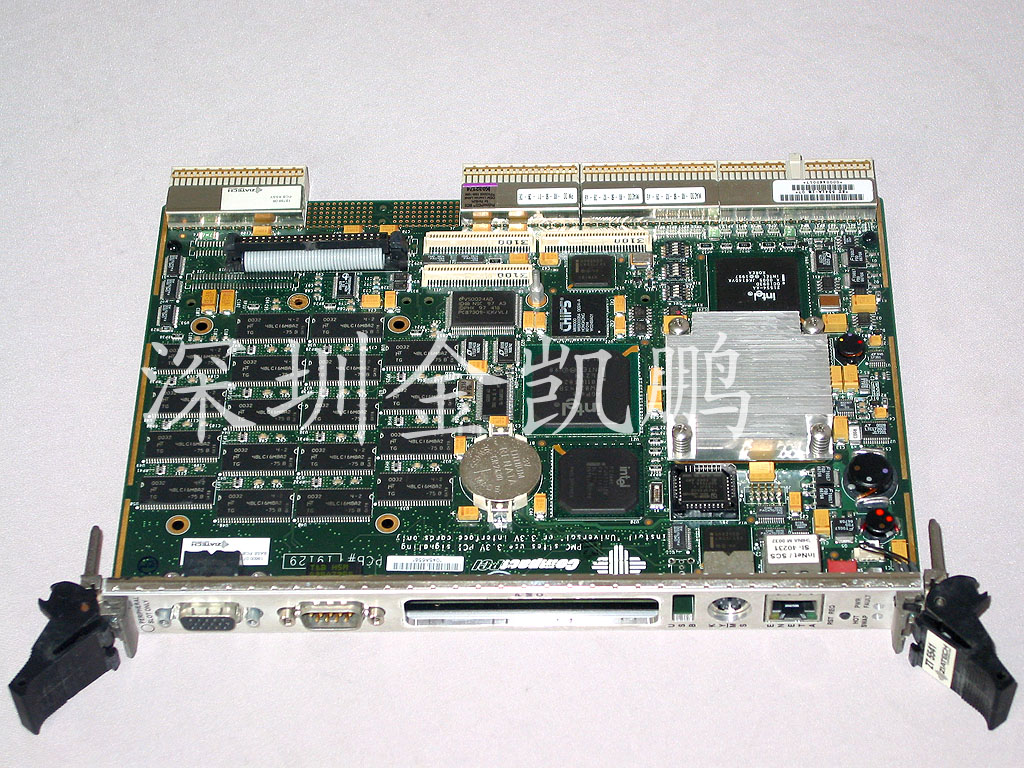

ZIATECH CPCI Pentium III-Low Power (BGA2) ZT 5541
ZIATECH CPCI Pentium III-Low Power (BGA2) ZT 5541
Model: ZT 5541
Manufacturer: Ziatech
CPCI Pentium III-Low Power (BGA2) at 500 MHz Intel 440BX 128 - 512 MB 1 Intel 82559 Fast Ethernet Multifunction PCI Controller Peripheral Master Processor Board
ZIATECH CPCI Pentium III-Low Power (BGA2) ZT 5541
This CompactPCI* Peripheral Master processor board is designed for telecommunications, Internet and industrial control applications requiring completely integrated multiprocessing solutions for increased performance and system reliability. A generous set of on-board embedded features and the 6U Eurocard mechanical form factor address the system integration requirements of OEM system builders. High-range performance comes from the Pentium? III processor and the CompactPCI bus, while support for major operating systems and real-time software speeds application development. The ZT 5541 is capable of running separate operating systems on individual Peripheral Masters in a compactnet multi-processing system. Intel's compactnet architecture accommodates one System Master and up to 31 Peripheral Master processors, such as the ZT 5541, allowing them to communicate over the backplane, much like an Ethernet network.
ZIATECH CPCI Pentium III-Low Power (BGA2) ZT 5541
Highlights
Pentium? III processor-Low Power Module
128 to 512 Mbytes ECC SDRAM
Level 2 cache support
64-bit, 33 MHz CompactPCI* interface
On-board flash memory
IDE hard drive and PMC site
Standard PC/AT peripherals
On-board Fast Ethernet
Universal Serial Bus (USB)
Front- and rear-panel I/O
ZIATECH CPCI Pentium III-Low Power (BGA2) ZT 5541
Optional CompactFlash* support
Compliant with PICMG* 2.0 rev. 3 (CompactPCI) and 2.1 (hot swap) specifications
Windows* NT, Windows* 2000 Pro, Windows* 2000 Server, Linux* and VxWorks* support |
